Wireless DMX Transmitter or Receiver DMX512 2.4GHz Digital Display 400 Meter Communication Distance XLR3

Wireless DMX512 Transceiver Transmits Standard in Wireless Mode DMX512 Console Data. This can function as a transmitter or receiver.

Features no delay during Data Transmission. Real-Time transmission with 2.4G Global Open ISM Band, License-Free Use.

Efficient GFSK Modulation, 126 Design of Channel Automatic Frequency Hopping Communication, Strong Anti-Interference Ability. This is suitable for Stage Lighting, Large-Scale Theatrical Performances, Stadium Lighting ,Temporary Stage Performances ,City Lights System, Television , Conference Center , Professional Theater ,Theme Park ,Dance Halls, Bars and Small Art Performances .

Features:

1. 2X8 BitLCD Display Working Status and Parameters
2. 4 Stage Output Power Regulation
3. 126 Automatic Frequency Hopping for Each Frequency Band,Automatic Selection of Non-Interference Frequency Band,Guarantee the Reliability of Communication.
4. 16 GroupID Encoding May Be Provided,Users Can Use Independent in One Place16 Group Wireless Networks without Doing Anything with Each Other
Scrambling.
5. Input Voltage:9-12VDC 500mA MIN
6. The Communication Distance:400M(The Void,Varies Depending on the Environment)
7. Working Frequency: ISM,126 A Band.
8. The Maximum Transmit Power:20dBm;The Reception Sensitivity:-94dBm
9. DMX The Signal Interface: 3PIN XLR3 Male and Female Plug
10. Dimensions:75X147X43 mm
11. Weight:360g

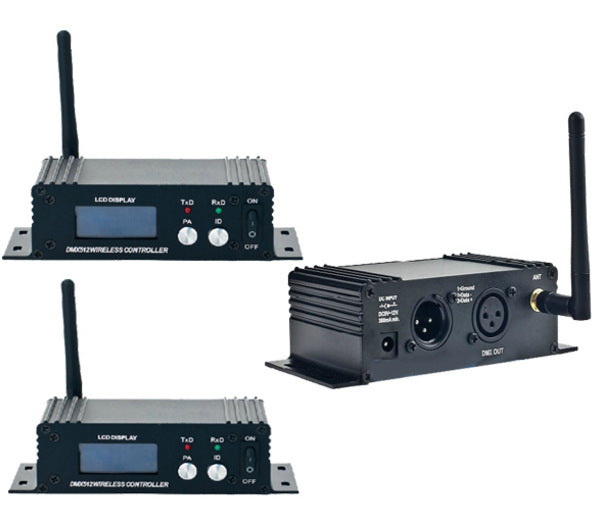

Appearance Description :

1:LCD The Display Window

2:Emission Indicator

3:Receiving Indicator

4:Emission Power Adjustment Button

5:ID Selected from Selection Button

6:Switch

7:External Power Input Jack

8:DMX Input Interface

9:DMX Output Interface

10:The Radio-Frequency Antenna
